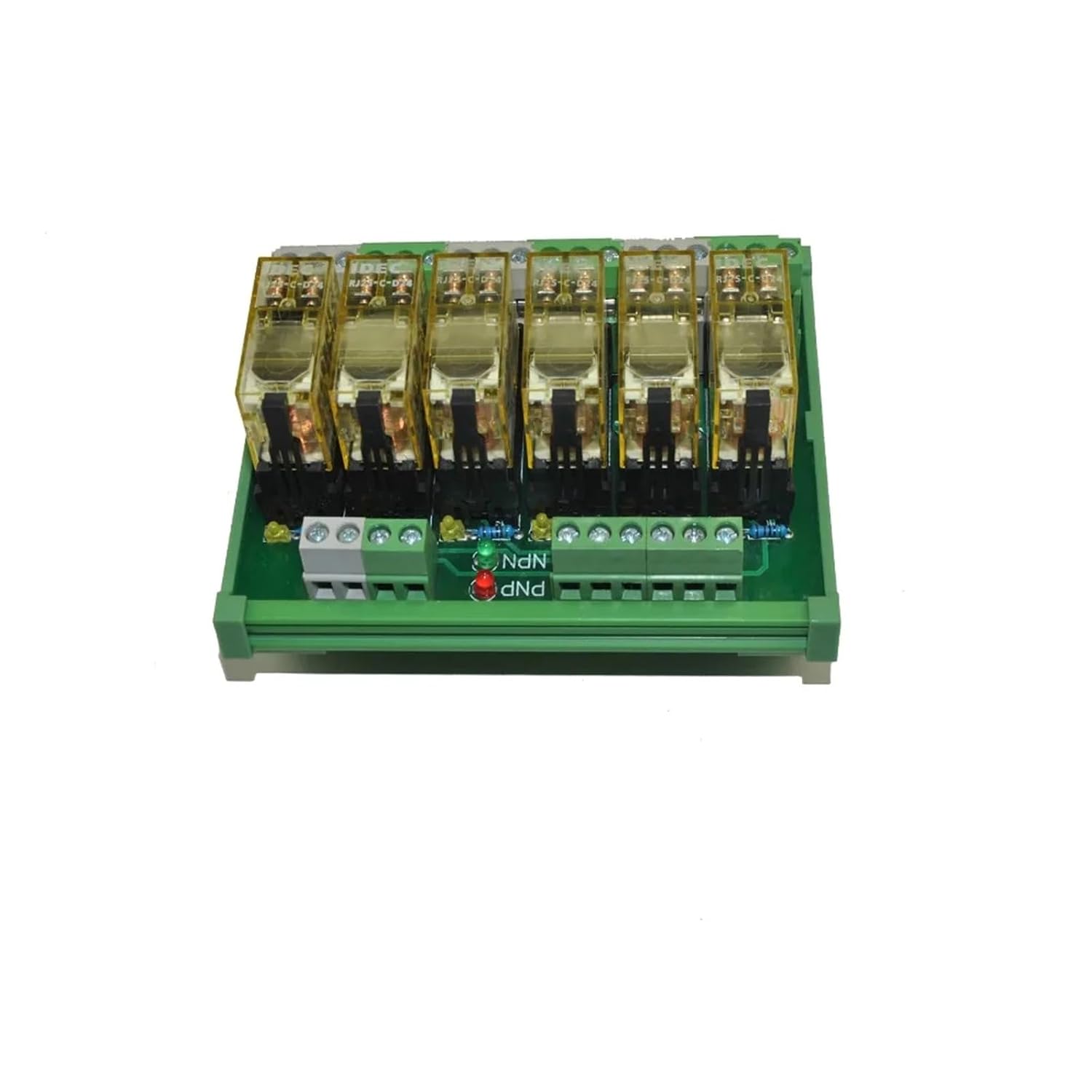

6 Channel DPDT DIN Rail Mount RJ2S Interface Relay Module

Terminal BlocksFeatures:1.DIN Rail interface relay modules 1/2/4/6/8/10/12/14/16 channels optional;2.Buit-in slim power relay RJ1S-C certified with UL,CSA,VDE, and compliant3. Switching current upto 8A at 250VAC or 30VDC;4. Input connections by screw terminal block.NPN&PNP can be interchangeableACDC can be in compatible;5. Relay status indicator LED,surge suppression protection and overvoltage protection are providedfor each relay channel;6. DIN Rail mountable for width TS15/28/35Ordering Code:Relay Module Dimension:Relay Qty Dimension(mm) N.W.(g) 2 40*85*70 120g 4 70*85*70 205g 6 100*85*70 295g 8 130*85*70 375g 10 160*85*70 470g 12 190*85*70 560g 14 220*85*70 650g 16 250*85*70 735g Application:Relay Modules are designed for current amplification and isolation protection of output loads.Applicable to ,microprocessor systems and time relays etc,amplifying the control current of outputs,to protect key controlsystems not being destroyed.DATE:Input Operation Voltage Rated ±20% &AC10 Relay Mounting Pluggable Rated Load Current 8A 250VAC30VDC Max Inrush Current 8A Coil Power Approx 053 W Operate Time(at normal volt.) 15ms Release Time(at normal volt.) 10ms Input/Output Connections Screw terminal block Wire Range 0.2~2.5mm2 Stripping Length 6-7mm DIN Rail Mountable 15/28/35mm Power Per Channel Wiring Diagram:==========Theory : Electromagnetic Relayis_customized : YesProtect Feature : compact housingUsage : General PurposeContact Load : High PowerModel Number : FY-2NRJ6C-D24DIN Rail Mount relay module : interface relay moduleSize : Miniature
